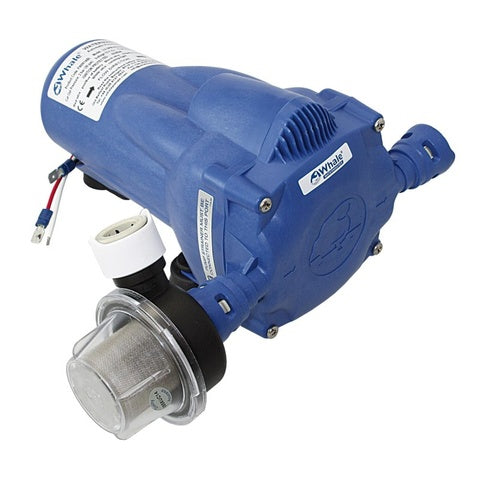

Whale FW1225 Watermaster Auto Pump 12L 24V 45PSI w. Strainer

Your selected configuration: Standard

Contact me with the item number if you need more technical information about this product.

Whale FW1225 automatic pressure pump - delivers a smooth, consistent flow and can run dry without damage.

Pump design based on over 70 years of product experience.
Traditionally, the design of automatic pressure pumps has focused mainly on high power or performance, but with Whale's experience in building products designed to withstand harsh marine conditions, they have added design features that protect the pump for a long time!

WHY Watermaster?

Features and benefits:

FLOW

High flow rate at multiple taps
Smooth constant flow
Self-priming up to 3 m (10 feet)
PERFORMANCE

Quiet, automatic operation
Easy installation - suitable for 15 mm Quick Connect plumbing or 1/2" threaded connections
Suitable for use with salt or fresh water
PROTECTION

Fully sealed protective motor housing
Fully integrated electronics
IP65 rated - no water ingress
Runs dry without damage
Includes strainer to protect the pump from debris
Pressure
45 PSI / 3.1 Bar
Flow Rate
12 LPM (3 US GPM)
Supplied with
Strainer
Accumulator Recommended
Yes
Hose connection
13mm / 1/2"
Max hose length
20 Meters (66 Feet)
Self-priming up to
3 Meters (9.8 Feet)
Cable Size
Minimum 1.5mm² (16 AWG)
Inlet & Outlet
Fittings for 15mm Whale Female Quick Connect, 13mm (1/2") ID Hose & 1/2" NPT
Brand
Whale
Model
P3 FW1225
Voltage Description
24V DC
Amps Description
4A
Fuse
5A
Approvals
EMC Compliant, CE Marked
Height
125mm (4.9")
Width
179mm (7")
Length
209mm (8-1/4")
Country of Origin
United Kingdom
Warranty
2 Years
