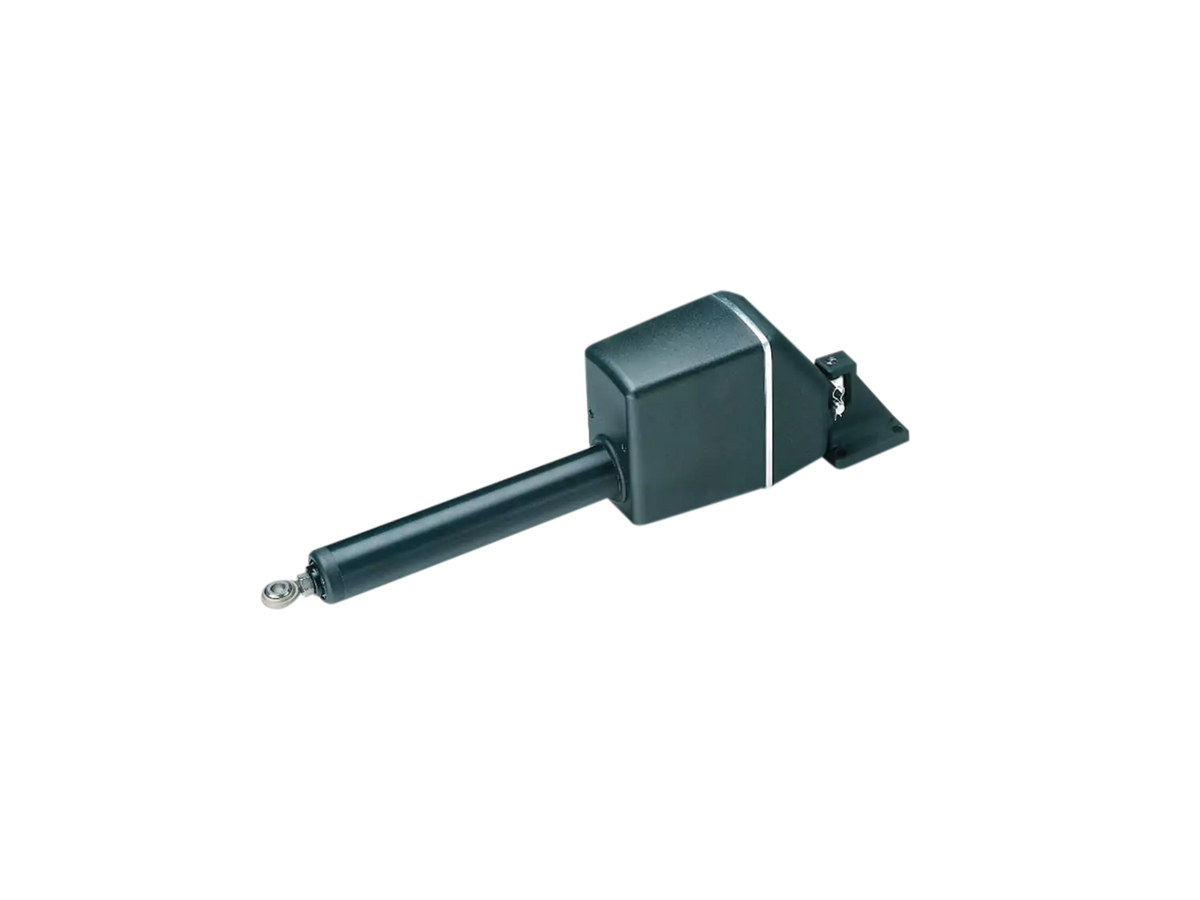

Raymarine 12 volt, Type 1 linear drive for mechanical steering systems
Item no. 16627
Tilpas autopilotens mekaniske arbejde til bådens styring.
- Omsætter autopilotens styresignal til bevægelse i et kompatibelt styresystem.
- Spændingsangivelse: 12 volt
- Spænding: 12 V
What is included
Denne vare er et drev eller en pumpe. Sensor, betjeningspanel og ACU indgår kun, hvis de udtrykkeligt er nævnt i variantoplysningerne.
Technical details
| Spændingsangivelse | 12 volt |
|---|---|
| Spænding | 12 V |
| Mærke | Raymarine |
Installation and choosing accessories
Match styregeometri, drevkapacitet, kontrolenhed, strøm og producentens dimensionering.
Passer til og installation
Kontrollér spænding, styresystem, drevtype og den tilhørende ACU. Bådens fuldt lastede deplacement og styremekanik indgår i dimensioneringen. Hydrauliske pumper vælges efter styrecylinderens volumen og styresystemets opbygning. En angivet maksimal bådvægt er en grænse fra producenten, ikke en garanti for, at drevet passer til alle både under den vægt.
Full product description
The drive converts the autopilot's steering signals into movement of the boat's rudder. The chosen model must be compatible with both the steering system and the autopilot control unit. This is particularly relevant when replacing an existing drive or installing an below-deck autopilot.
This variant
- Max. stroke 300 mm (12 inches)
- For 12-volt DC systems
- Works with ACU-200
Compatibility and installation
Check the voltage, steering system, drive type, and the corresponding ACU. The boat's fully loaded displacement and steering mechanism are factors in the sizing. Hydraulic pumps are selected based on the steering cylinder volume and the design of the steering system. A stated maximum boat weight is a limit from the manufacturer, not a guarantee that the drive is suitable for all boats under that weight.
Scope of delivery
This item is a drive or a pump. Sensors, control panels, and ACUs are only included if explicitly mentioned in the variant details.
