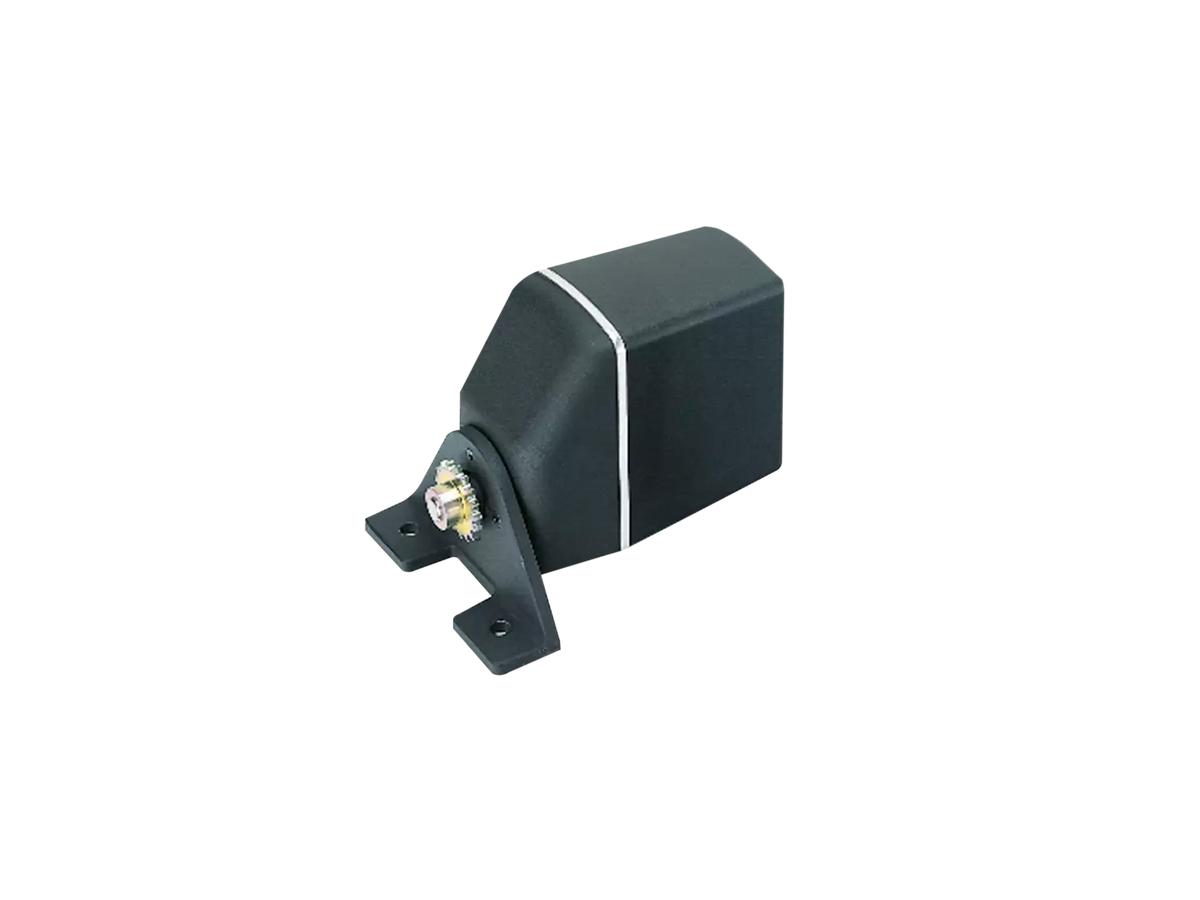

Raymarine 12 volt, type 1 rotary autopilot drive
Item no. 16632
Få hjælp til at holde den valgte kurs under opsyn.
- Indgår i et autopilotsystem med kompatible sensorer, betjening og drev.
- Spændingsangivelse: 12 volt
- Spænding: 12 V
What is included
Denne vare er et drev eller en pumpe. Sensor, betjeningspanel og ACU indgår kun, hvis de udtrykkeligt er nævnt i variantoplysningerne.
Technical details
| Spændingsangivelse | 12 volt |
|---|---|
| Spænding | 12 V |
| Mærke | Raymarine |
Installation and choosing accessories
Kontrollér dækningsomfanget i pakken og kompatibilitet mellem sensor, kontrolenhed og drev. Autopiloten kræver stadig aktivt udkig.
Passer til og installation
Kontrollér spænding, styresystem, drevtype og den tilhørende ACU. Bådens fuldt lastede deplacement og styremekanik indgår i dimensioneringen. Hydrauliske pumper vælges efter styrecylinderens volumen og styresystemets opbygning. En angivet maksimal bådvægt er en grænse fra producenten, ikke en garanti for, at drevet passer til alle både under den vægt.
Full product description
The drive converts the autopilot's steering signals into movement of the boat's rudder. The chosen model must be compatible with both the steering system and the autopilot control unit. This is particularly relevant when replacing an existing drive or building an under-deck autopilot system.
This variant
- For boats up to 11,000 kg (24,000 lbs.) displacement
- For 12-volt DC systems
- Works with the ACU-200
Suitability and installation
Check the voltage, steering system, drive type, and the corresponding ACU. The boat's fully loaded displacement and steering mechanics are factors in the sizing process. Hydraulic pumps are selected based on the steering cylinder's volume and the steering system's configuration. A specified maximum boat weight is a limit set by the manufacturer, not a guarantee that the drive is suitable for all boats under that weight.
Scope of delivery
This item is a drive or a pump. Sensors, control panels, and ACUs are only included if explicitly mentioned in the variant details.
