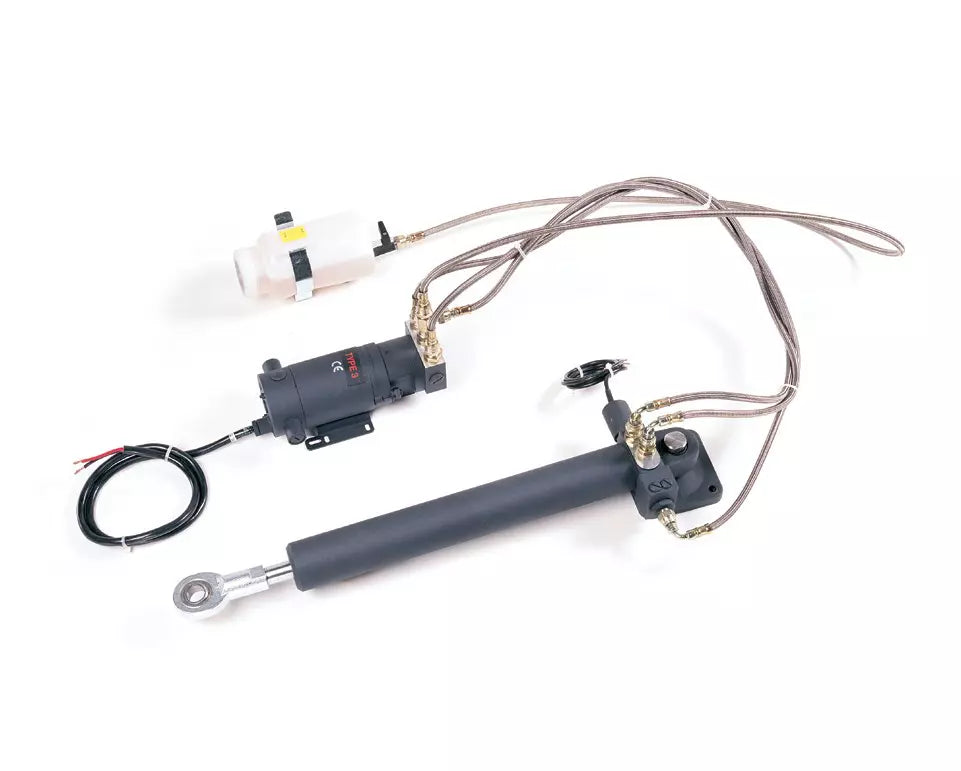

Raymarine 12 volt, type 2 hydraulic linear drive for mechanical steering systems
Item no. 16430
Tilpas autopilotens mekaniske arbejde til bådens styring.
- Omsætter autopilotens styresignal til bevægelse i et kompatibelt styresystem.
- Spændingsangivelse: 12 volt
- Spænding: 12 V
What is included
Denne vare er et drev eller en pumpe. Sensor, betjeningspanel og ACU indgår kun, hvis de udtrykkeligt er nævnt i variantoplysningerne.
Technical details
| Spændingsangivelse | 12 volt |
|---|---|
| Spænding | 12 V |
| Mærke | Raymarine |
Installation and choosing accessories
Match styregeometri, drevkapacitet, kontrolenhed, strøm og producentens dimensionering.
Passer til og installation
Kontrollér spænding, styresystem, drevtype og den tilhørende ACU. Bådens fuldt lastede deplacement og styremekanik indgår i dimensioneringen. Hydrauliske pumper vælges efter styrecylinderens volumen og styresystemets opbygning. En angivet maksimal bådvægt er en grænse fra producenten, ikke en garanti for, at drevet passer til alle både under den vægt.
Full product description
The drive converts the autopilot's steering signals into movement of the boat's rudder. The chosen version must be compatible with both the steering system and the autopilot control unit. This is particularly relevant when replacing an existing drive or when building an under-deck autopilot system.
This variant
- For 12-volt DC systems
- Works with ACU-400
Compatibility and installation
Check the voltage, steering system, drive type, and the associated ACU. The boat's fully loaded displacement and steering mechanics are factors in the dimensioning. Hydraulic pumps are selected based on the steering cylinder's volume and the design of the steering system. A specified maximum boat weight is a limit from the manufacturer, not a guarantee that the drive will suit all boats under that weight.
Scope of delivery
This item is a drive or a pump. The sensor, control head, and ACU are only included if expressly mentioned in the variant details.
Manual and documentation
Official product information
Manufacturer manuals and documentation
