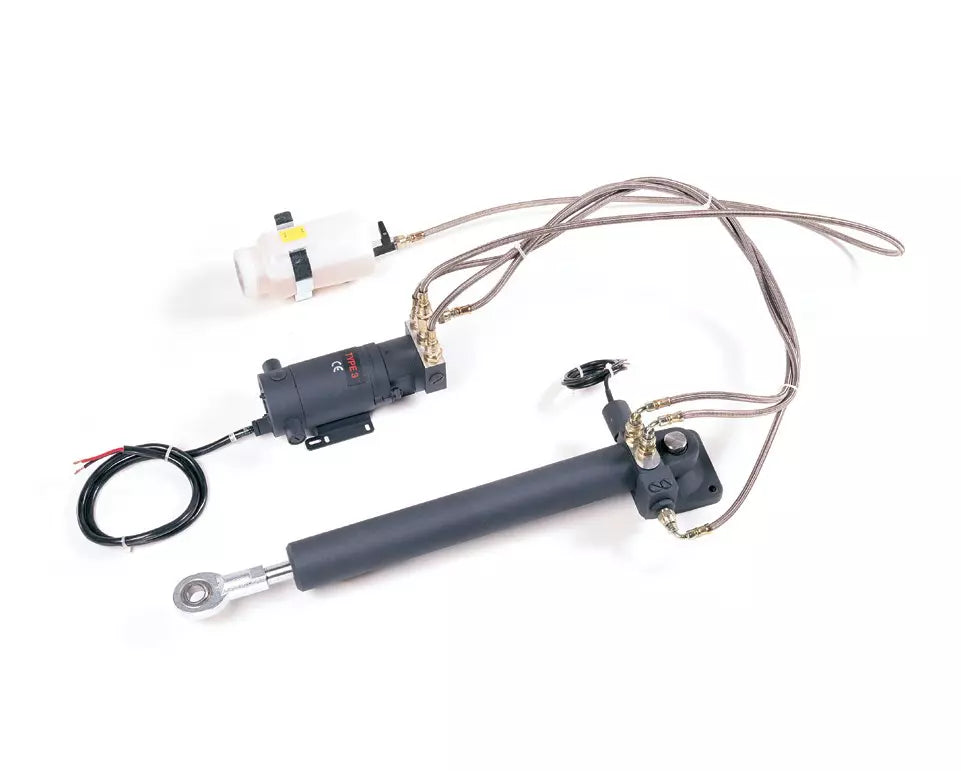

Raymarine 24-volt, Type 2 hydraulic linear drive for mechanical steering systems
Item no. 16431
Tilpas autopilotens mekaniske arbejde til bådens styring.
- Omsætter autopilotens styresignal til bevægelse i et kompatibelt styresystem.
- Spændingsangivelse: 24 volt
- Spænding: 24 V
What is included
Denne vare er et drev eller en pumpe. Sensor, betjeningspanel og ACU indgår kun, hvis de udtrykkeligt er nævnt i variantoplysningerne.
Technical details
| Spændingsangivelse | 24 volt |
|---|---|
| Spænding | 24 V |
| Mærke | Raymarine |
Installation and choosing accessories
Match styregeometri, drevkapacitet, kontrolenhed, strøm og producentens dimensionering.
Passer til og installation
Kontrollér spænding, styresystem, drevtype og den tilhørende ACU. Bådens fuldt lastede deplacement og styremekanik indgår i dimensioneringen. Hydrauliske pumper vælges efter styrecylinderens volumen og styresystemets opbygning. En angivet maksimal bådvægt er en grænse fra producenten, ikke en garanti for, at drevet passer til alle både under den vægt.
Full product description
The drive converts the autopilot's steering signals into movement of the boat's rudder. The chosen model must be compatible with both the steering system and the autopilot's control unit. This is particularly relevant when replacing an existing drive or when setting up an under-deck autopilot.
This variant
- For 24-volt DC systems
Compatibility and installation
Check the voltage, steering system, drive type, and the associated ACU. The boat's fully loaded displacement and steering mechanism are factors in the sizing process. Hydraulic pumps are selected based on the steering cylinder's volume and the layout of the steering system. A specified maximum boat weight is a limit from the manufacturer, not a guarantee that the drive will be suitable for all boats under that weight.
Scope of delivery
This item is a drive or a pump. Sensors, control panels, and the ACU are only included if explicitly mentioned in the variant details.
