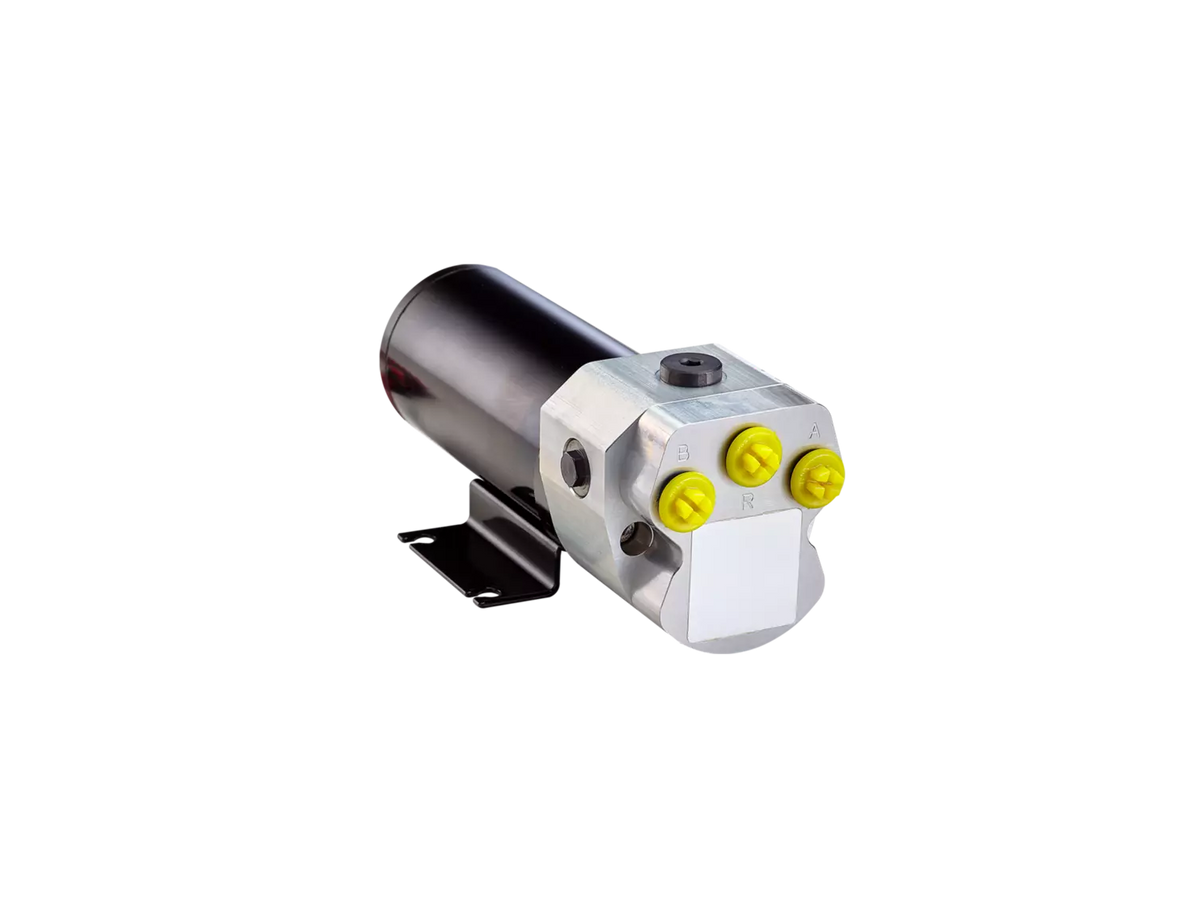

Raymarine 24-volt, type 3 pump for hydraulic steering systems
Item no. 16625
Vælg en pumpe, der passer til væsken og den vej, den skal flyttes.
- Flytter den væske eller luft, modellen er beregnet til.
- Spænding: 24 V
- Kapacitet og tilslutninger gør det muligt at matche den med installationen.
What is included
Denne vare er et drev eller en pumpe. Sensor, betjeningspanel og ACU indgår kun, hvis de udtrykkeligt er nævnt i variantoplysningerne.
Technical details
| Spænding | 24 V |
|---|---|
| Mærke | Raymarine |
Installation and choosing accessories
Kontrollér medie, spænding, driftstype, løftehøjde, flow og tilslutninger i producentens data.
Passer til og installation
Kontrollér spænding, styresystem, drevtype og den tilhørende ACU. Bådens fuldt lastede deplacement og styremekanik indgår i dimensioneringen. Hydrauliske pumper vælges efter styrecylinderens volumen og styresystemets opbygning. En angivet maksimal bådvægt er en grænse fra producenten, ikke en garanti for, at drevet passer til alle både under den vægt.
Full product description
The drive translates the autopilot's steering signals into movement of the boat's rudder. The chosen version must be compatible with both the steering system and the autopilot's control unit. This is especially relevant when replacing an existing drive or when setting up an below-deck autopilot.
This variant
- For 24-volt DC systems
Compatibility and installation
Check the voltage, steering system, drive type, and the corresponding ACU. The boat's fully loaded displacement and steering mechanism are factors in the sizing process. Hydraulic pumps are selected based on the steering cylinder's volume and the layout of the steering system. A stated maximum boat weight is a limit from the manufacturer, not a guarantee that the drive will be suitable for all boats under that weight.
Scope of delivery
This item is a drive or a pump. Sensors, control panels, and the ACU are only included if explicitly stated in the variant details.
Manual and documentation
Official product information
Manufacturer's manuals and documentation
