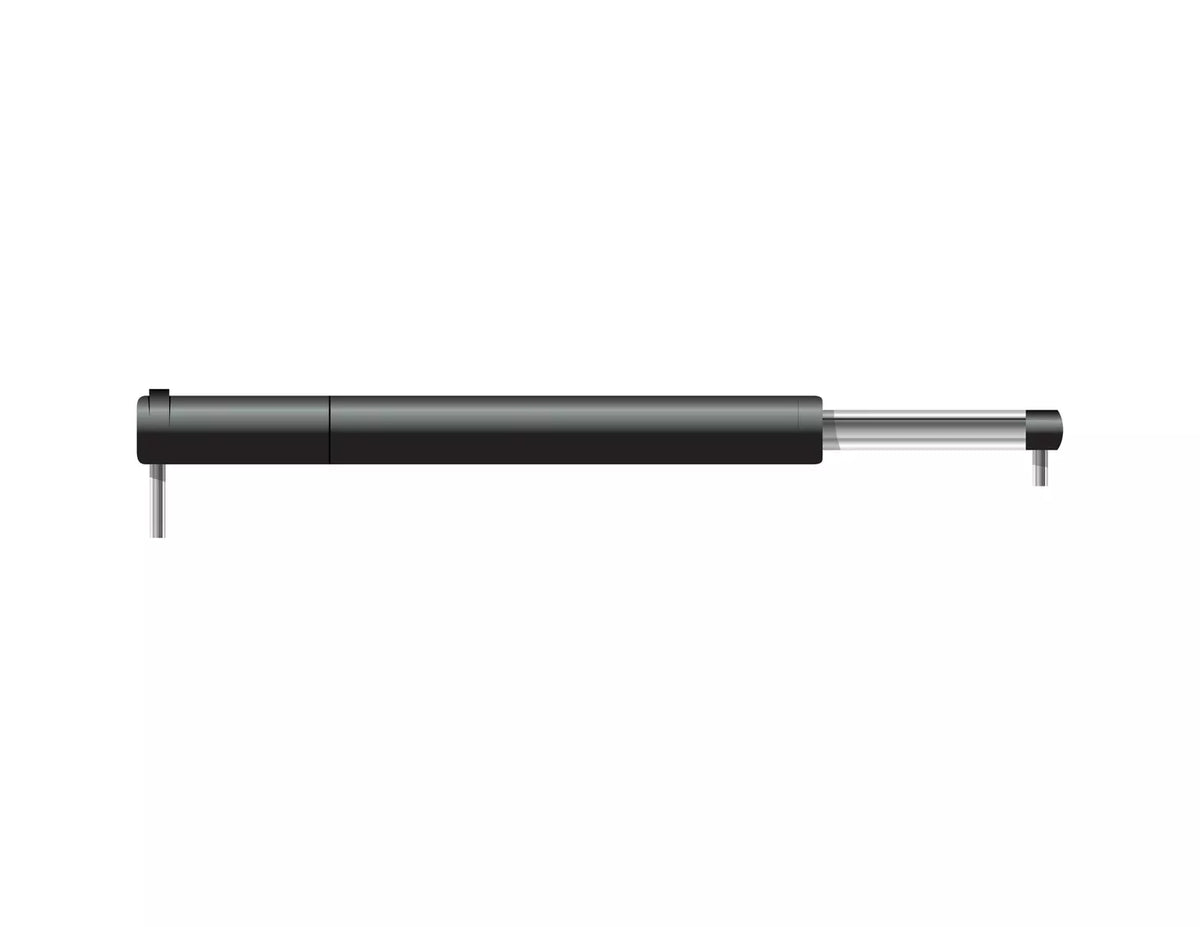

Raymarine tiller drive unit in cockpit
Item no. 16414
Tilpas autopilotens mekaniske arbejde til bådens styring.
- Omsætter autopilotens styresignal til bevægelse i et kompatibelt styresystem.
- Spænding: 12 V
- Vælg drevtype efter ror, styring og bådens belastning.
What is included
Denne vare er et drev eller en pumpe. Sensor, betjeningspanel og ACU indgår kun, hvis de udtrykkeligt er nævnt i variantoplysningerne.
Technical details
| Spænding | 12 V |
|---|---|
| Mærke | Raymarine |
Installation and choosing accessories
Match styregeometri, drevkapacitet, kontrolenhed, strøm og producentens dimensionering.
Passer til og installation
Kontrollér spænding, styresystem, drevtype og den tilhørende ACU. Bådens fuldt lastede deplacement og styremekanik indgår i dimensioneringen. Hydrauliske pumper vælges efter styrecylinderens volumen og styresystemets opbygning. En angivet maksimal bådvægt er en grænse fra producenten, ikke en garanti for, at drevet passer til alle både under den vægt.
Full product description
The drive converts the autopilot's steering signals into movement of the boat's rudder. The chosen model must be compatible with both the steering system and the autopilot control unit. This is particularly relevant when replacing an existing drive or installing an under-deck autopilot.
This variant
- For boats up to 6000 kg (13,000 lbs.) displacement
- For 12-volt DC systems
- Works with ACU-100
Compatibility and installation
Check the voltage, steering system, drive type, and the associated ACU. The boat's fully loaded displacement and steering mechanics are factors in sizing. Hydraulic pumps are selected based on the steering cylinder volume and the design of the steering system. A specified maximum boat weight is a limit from the manufacturer, not a guarantee that the drive is suitable for all boats under that weight.
Scope of delivery
This item is a drive or pump. A sensor, control head, and ACU are only included if explicitly stated in the variant information.
