Raymarine SeaTalk NG to VHF NMEA 0183 converter kit

Match protokol, stik og netværksopbygning. Ens stikform er ikke dokumentation for samme signal eller spænding.

Passer til og installation

SeaTalkng/NMEA 2000, SeaTalk 1 og Ethernet-baserede RayNet/SeaTalk HS er forskellige netværk. Et adapterkabel ændrer ikke automatisk dataprotokollen. Vælg backbone-, spur- eller netværkskabel efter den konkrete opgave og producentens netværksdiagram.

This network component is used for the specified connection in the boat's electronic system. The correct cable type and connector make the installation easier to plan and expand.

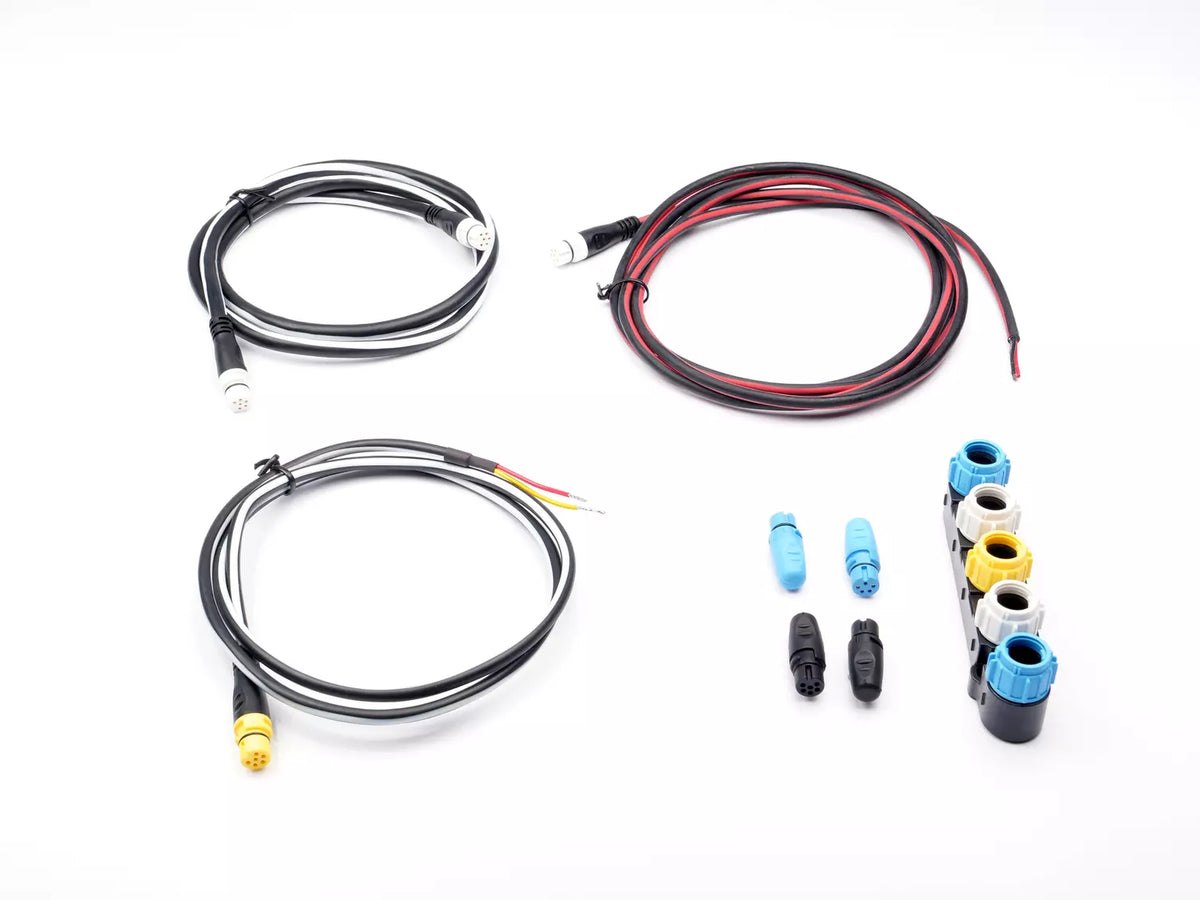

This variant

• 1 x Power cable 2 m (6.6 ft). Used to provide 12 V DC power to the SeaTalk NG backbone
• 1 x Spur cable 1 m (3.3 ft). Used to connect a device to the SeaTalk NG backbone
• 1 x NMEA 0183 VHF with stripped end (2 wires) to SeaTalk NG Adapter cable 1 m (3.3 ft). Used to connect an NMEA 0183 VHF radio to the SeaTalk NG backbone via NMEA 0183 VHF to SeaTalk NG converter
• 1 x SeaTalk to SeaTalk NG converter (item number: ). Each converter allows for the connection of 1 SeaTalk device and up to 2 SeaTalk NG devices.
• 2 x Spur blanking plugs. Used to cover unused spur connections in 5-way blocks, T-pieces, and SeaTalk to SeaTalk NG converters.
• 2 x Backbone terminators. The terminators must be fitted at both ends of the SeaTalk NG backbone.

Compatibility and installation

SeaTalkng/NMEA 2000, SeaTalk 1, and Ethernet-based RayNet/SeaTalk HS are different networks. An adapter cable does not automatically change the data protocol. Choose backbone, spur, or network cable based on the specific task and the manufacturer's network diagram.

Scope of delivery

The described network component or the specified cable kit. A single loose part does not constitute a complete network.
